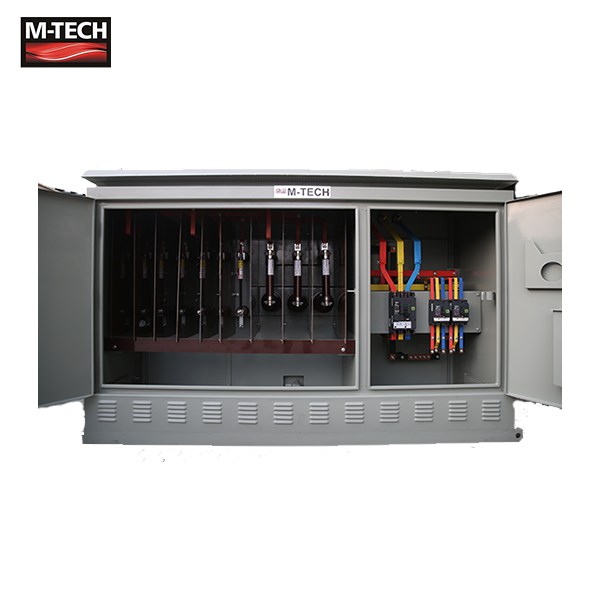

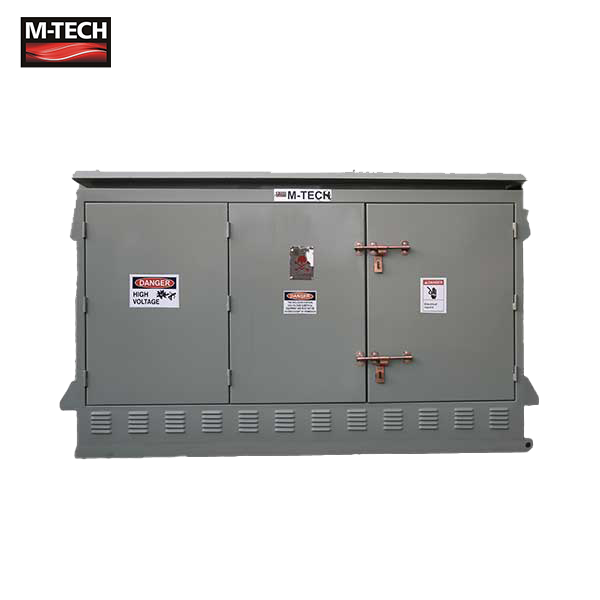

Pad Mounted Type Transformers

p-1 p-2

Pad Mounted Type Transformers

As per wapda/NTDC standard i.e DDS84:2007
Available Rating: 25kVA, 50kVA, 100kVA, 200kVA, 400kVA, 630kVA
Also Available : 800 kVA to 2000kVA (Step up and Step down)

Voltage: 33/11 kV, 20/0.4 kV, 15/0.4kV, 11/0.4 kV
Frequency: 50Hz/60Hz
